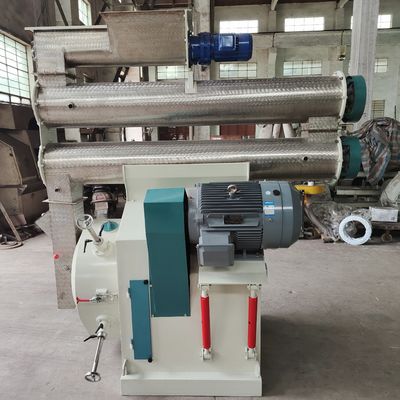

Moinho de madeira da pelota da alimentação

Informação Básica
Lugar de origem: WUXI, CHINA
Número do modelo: HKJ-35
Quantidade de ordem mínima: 1
Detalhes da embalagem: carga completa do recipiente
Tempo de entrega: 20-30 dias
Termos de pagamento: T/T, L/C
Habilidade da fonte: 30 PCes pelo mês
Informação detalhada
Nome do produto: máquina da pelota, moinho da pelota Aplicação: alimentações dos rebanhos animais, alimentações das aves domésticas, alimentações dos peixes
Função: produzindo pelotas da alimentação animal Tensão: 380V, trifásico
Poder: 30KW*2 Capacidade: 3-5t/h
Tipo: Movimentação de correia Alimentador: controle do inversor
Cor: personalizado
Realçar:

Feed Pelletizer

,

Pellet Maker Machine

,

Pellet Press Machine


Descrição de produto

Model Innder diameter
of die
Pellets size Capacity Main motor power Feeder motor power Conditioner
Motor power
HKJ-32 ¢ 320mm ¢1.5-¢8mm 2-3t/H 22KW*2 1.1KW 1.1KW
HKJ-35 ¢ 350mm ¢1.5-¢8mm 3-5t/H 30KW*2 1.1KW 1.5KW
HKJ-40 ¢ 400mm ¢1.5-¢8mm 5-8t/H 45KW*2 1.1KW 1.5KW
HKJ-450 ¢ 450mm ¢1.5-¢8mm 5-12t/H 45KW*2/55KW*2 1.5KW 2.2KW
HKJ-480 ¢ 480mm ¢1.5-¢8mm 5-20t/H 45KW*2/75KW*2 1.5KW 3KW



Distinguished pelleting stability

Unique double-timing belt driving and cooling system for motors output same torque simultaneously, sectional ring die clamper for fixing ring die onto rotor firmly, widened supporting area of main shaft are enabling long-time stable production.



Superior pellet quality

Conditioning system for longer retention time and more beneficial to gelatinization and sterilization of feed, contributing to consistent top quality products. Pellet size ranging from Φ1.5mm to Φ8mm.



High output

Optimized feed-to-pellet deflector structure, widened ring die working area to enable consistent high output and low energy consumption.



◎HKJ series pellet mill adopts SPZ narrow belt drive system, high driving efficiency & stability, low maintenance.
◎This series pellet mill can produce pellets of diameter 1.5mm to 8mm.
◎Fixed type stainless pellets cutting blade, Easy adjusting & Quick detachable hold hoop type ring die
◎Feeding is controlled by frequency inverter.
◎It is used to produce high quality poultry, livestock, fish, shrimp feedstuff pellets.



Q: Are you a trading company or a manufacturer?

A: We are a manufacturer with almost 30 years’ experience in this industry. Our products are sold to more than 100 countries.

Q: I know little about feed machine and production line. How can I get start?

A: please let us know your business plan, such as which animal feeds you want to produce, how many tons of feeds you will produce per day, how many raw materials you use and so on. We will design the whole process flow for you, and our engineer will optimize the structure according to your plant.

Q: We do not have experience on operation and maintenance of the production line. How can I install and run a feed factory?

A: Our technician will get to your place and provide on-site installation instructions and operation trainings.

Q: What is your payment term?

A: 30 % T/T in advance & 70% T/T before shipment or 100% L/C at sight
